Setting up Advanced Video Analytics Rules via the App or Website

Add the Video Analytics rule

Select the rule type

1. Click to select the desired camera. If the camera needs to be calibrated, the user is directed to the Calibrate page.



2. In Select Type, click to select the rule type.
   • Click Tripwire when a target is likely to cross through the camera’s field of view or when objects enter or exit an area (e.g., a car pulling into or backing out of a driveway).



   • Click Ground Zone when a target is likely to linger in the camera’s field of view (e.g., a person delivering a package on the front porch).



3. If the camera has Video Motion Detection (VMD) recording rules set up, they must be deleted before setting up a Video Analytics rule. When prompted to automatically delete them, click OK to continue. The VMD windows can be added back later when necessary.
4. Click Next.

Select the camera scene

1. In Scenery, click to select Indoors or Outdoors based on where the camera is installed. The camera should be marked outdoors if it will be exposed to rain, snow, spider webs, or moving trees and set to indoors if in a controlled outdoor environment (e.g., a screened-in porch).

   Note: This selection must be the same across all recording rules associated with a specific camera.



2. Use the Minimum Object Detection Size slider to adjust how small an object can be and still trigger a recording. It is recommended to keep this at its suggested value upon initial rule creation. Very Large captures the fewest recordings only of the largest objects, and Very Small captures the most recordings including large and small objects.

   Note: Certain video devices have a calibration process that replaces the Minimum Object Detection Size setting. Minimum Object Detection Size will not appear on this page for those cameras.



3. Click Next.

To configure a Ground Zone rule:

Skip this section if Tripwire was chosen during rule type selection.

1. In the Rule Name field, enter a name for the recording rule.

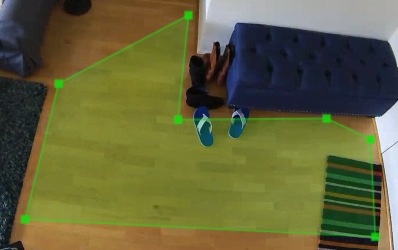

2. Click and drag the corners of the shape to cover only the ground where the target’s feet will be. To clear the current area of interest and restart, click Clear ground zone.
   • Click and hold inside the shape to move the shape itself.



3. Using the Duration Inside Area of Interest dropdown menu, select the desired time an object needs to stay inside the Ground Zone to trigger a recording.




To configure a Tripwire rule:

Skip this section if Ground Zone was chosen during rule type selection.

1. In the Rule Name field, enter a name for the recording rule.

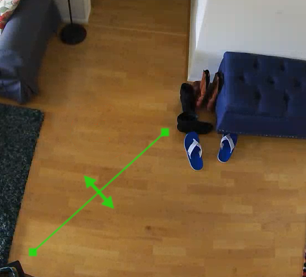

2. Click and drag the Tripwire to cover only the ground where the target's feet cross. The arrow determines which direction the object must be moving to trigger a recording. To clear the current Tripwire and restart, click Clear Tripwire.



3. Customize the direction of movement to be recorded:



   • In Direction, click Switch directions to switch the direction of the movement to capture.
   • Click to select Both Directions to record when an object crosses the Tripwire regardless of which direction it is moving.

To configure schedules, exceptions, and notifications for the rule:

1. Using the Set Minimum Delay Between Clips dropdown menu, select the desired timeframe. This setting determines how long the camera must wait after recording a clip to trigger another recording.



2. In The Rule will run..., click to select At all times or Only during the following times.
   • If Only during the following times is selected:
     1. Click to select the days of the week to record on.
     2. Using the Begin dropdown menu, select the time for the recording rule to start.
     3. Using the End dropdown menu, select the time for the recording rule to stop.



3. In Except when..., click to select any available exceptions that turn the rule off regardless of the schedule. Options depending on the equipment include: the panel is armed away, the panel is armed stay, and Geo-Device is inside a specified Geo-Fence.



4. In Send notification for clips containing..., click to select the types of clips that the user wants to be notified about. The camera records and uploads all motion it detects but only sends a notification to the user based on the selected notification options.



   Note: Clips included in the Other category are when the camera detects an object but is unable to determine which type of object it is.

5. Click to select the desired notification recipients. It is recommended to use push notifications to a phone using the dropdown option to attach a thumbnail.




To configure light automation for the rule:

Camera-driven light automation rules require Lights to be enabled on the customer's service package along with at least one Z-Wave light device enrolled on the account. If these requirements are met, the Light Automation section appears toward the bottom of the Video Analytics Rule.
